B82131A5701M000

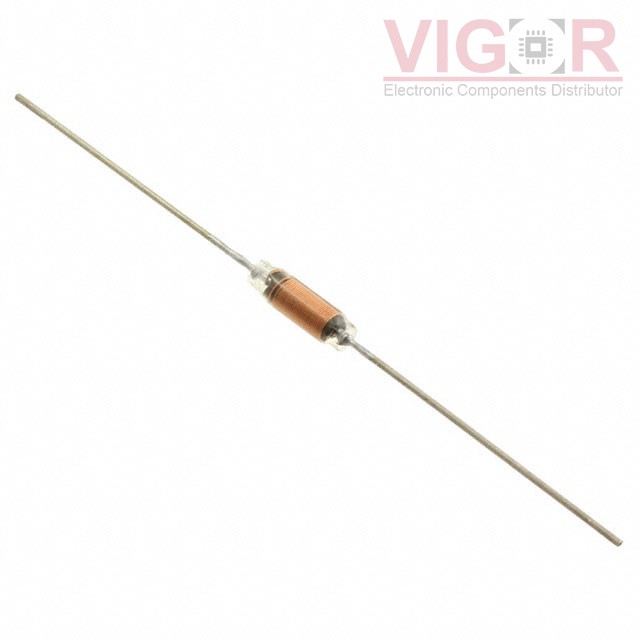

Image is for reference,
please contact us to get the real picture

Part No :: B82131A5701M000

Manufacturer: TDK EPCOS

Description: FIXED IND 14UH 700MA 760 MOHM TH

Catalog: Fixed Inductors

DataSheet: B82131A5701M000 PDF

Availability: 1508 pieces

Unit Price: ~~$1.30000~~

Current price of B82131A5701M000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82131A5701M000 Specifications

Type	Description
Series:	B82131
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Iron
Inductance:	14 µH
Tolerance:	±20%
Current Rating (Amps):	700 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	760mOhm
Q @ Freq:	-
Frequency - Self Resonant:	53MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.197" Dia x 0.591" L (5.00mm x 15.00mm)
Height - Seated (Max):	-
