CDRH3D23NP-4R7PC

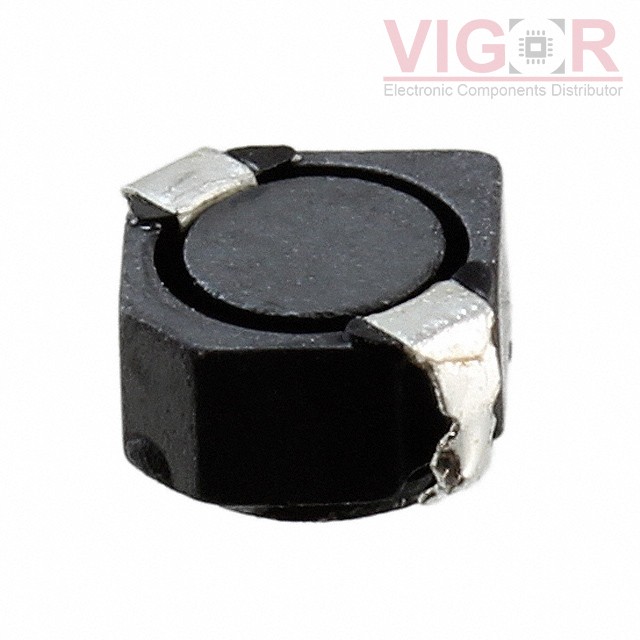

Image is for reference,
please contact us to get the real picture

Part No :: CDRH3D23NP-4R7PC

Manufacturer: Sumida Corporation

Description: FIXED IND 4.7UH 1.9A 68.8 MOHM

Catalog: Fixed Inductors

DataSheet: CDRH3D23NP-4R7PC PDF

Availability: 3810 pieces

Unit Price: ~~$0.88000~~

Current price of CDRH3D23NP-4R7PC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDRH3D23NP-4R7PC Specifications

Type	Description
Series:	CDRH3D23
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	4.7 µH
Tolerance:	±25%
Current Rating (Amps):	1.9 A
Current - Saturation (Isat):	1.3A
Shielding:	Shielded
DC Resistance (DCR):	68.8mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max):	0.098" (2.50mm)

Please confirm the specifications of the products when ordering.
