EST1040T2R2NDGA

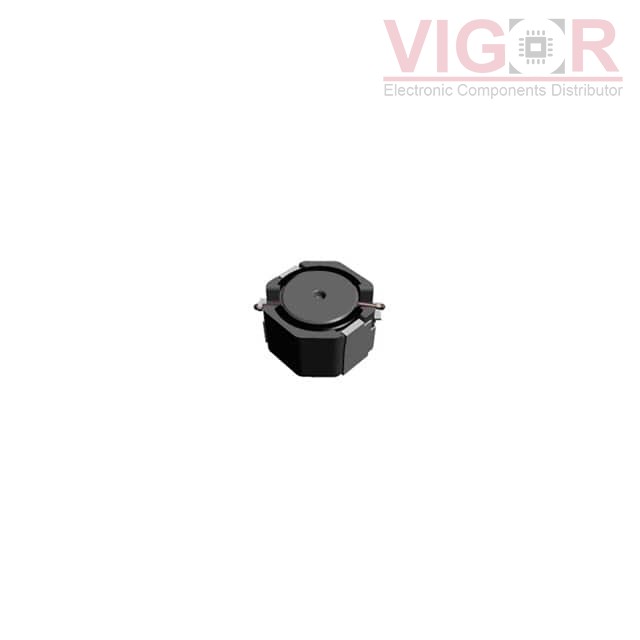

Image is for reference,
please contact us to get the real picture

Part No :: EST1040T2R2NDGA

Manufacturer: TAIYO YUDEN

Description: FIXED IND 2.2UH 3.1A 14 MOHM SMD

Catalog: Fixed Inductors

DataSheet: EST1040T2R2NDGA PDF

Availability: 1400 pieces

Unit Price: ~~$1.31000~~

Current price of EST1040T2R2NDGA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EST1040T2R2NDGA Specifications

Type	Description
Series:	ES, T Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±30%
Current Rating (Amps):	3.1 A
Current - Saturation (Isat):	7.5A
Shielding:	Shielded
DC Resistance (DCR):	14mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	55MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.398" L x 0.394" W (10.10mm x 10.00mm)
Height - Seated (Max):	0.169" (4.30mm)
