WCL2520-1R8-R

Part No :: WCL2520-1R8-R

Manufacturer: PowerStor (Eaton)

VIGOR # :: 1622013

Description: FIXED IND 1.8UH 320MA 950 MOHM

Catalog: Fixed Inductors

DataSheet: WCL2520-1R8-R PDF

Country of origin: -

Date code: -

WCL2520-1R8-R Specifications

Type	Description
Series:	WCL2520
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	1.8 µH
Tolerance:	±5%
Current Rating (Amps):	320 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	950mOhm Max
Q @ Freq:	12 @ 7.96MHz
Frequency - Self Resonant:	168MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008
Size / Dimension:	0.115" L x 0.110" W (2.92mm x 2.79mm)
Height - Seated (Max):	0.083" (2.10mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 14 - Apr 18 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.0990~~	~~$0.10~~

Current price of WCL2520-1R8-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

HCM1A1105V2-3R3-R

FIXED IND 3.3UH 9.5A 10.7 MOHM

MPX1D1770L150

FIXED IND 15UH 12A 17.8 MOHM SMD

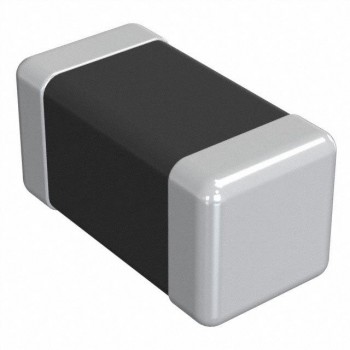

DFE18SANR47ME0L
