SWS-0.82-78

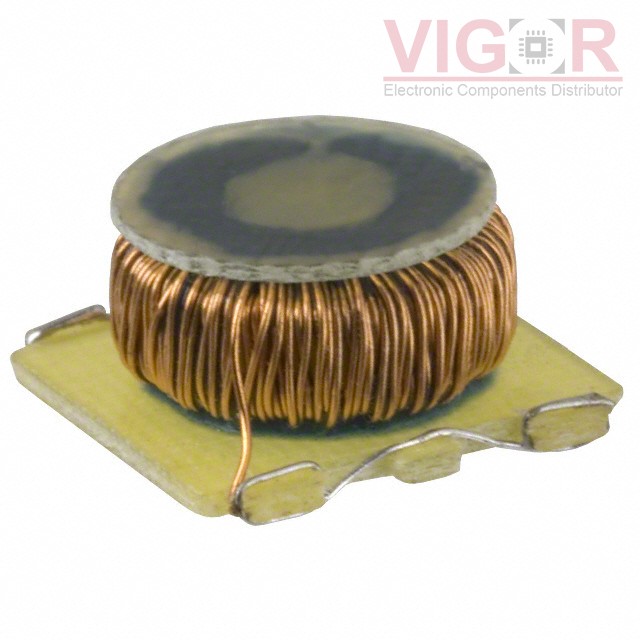

Image is for reference,
please contact us to get the real picture

Part No :: SWS-0.82-78

Manufacturer: Amgis

Description: FIXED IND 78UH 820MA 300 MOHM

Catalog: Fixed Inductors

DataSheet: SWS-0.82-78 PDF

Availability: 0 pieces

Unit Price: ~~$2.99200~~

Current price of SWS-0.82-78 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SWS-0.82-78 Specifications

Type	Description
Series:	SW
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Toroidal
Material - Core:	Iron Powder
Inductance:	78 µH
Tolerance:	±20%
Current Rating (Amps):	820 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	300mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	10 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.504" L x 0.504" W (12.80mm x 12.80mm)
Height - Seated (Max):	0.285" (7.25mm)

Please confirm the specifications of the products when ordering.
