CDR7D28MNNP-6R8NC

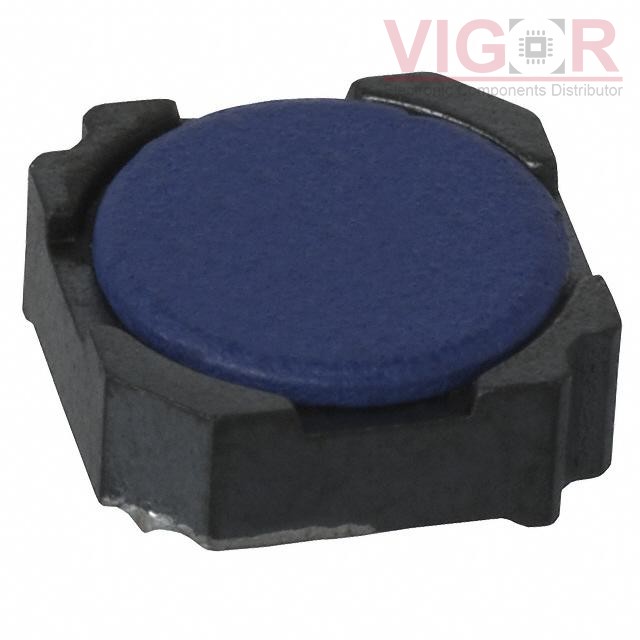

Image is for reference,
please contact us to get the real picture

Part No :: CDR7D28MNNP-6R8NC

Manufacturer: Sumida Corporation

Description: FIXED IND 6.8UH 2.75A 46.3 MOHM

Catalog: Fixed Inductors

DataSheet: CDR7D28MNNP-6R8NC PDF

Availability: 21555 pieces

Unit Price: ~~$1.30000~~

Current price of CDR7D28MNNP-6R8NC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDR7D28MNNP-6R8NC Specifications

Type	Description
Series:	CDR7D28MN
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	6.8 µH
Tolerance:	±25%
Current Rating (Amps):	2.75 A
Current - Saturation (Isat):	2.9A
Shielding:	Shielded
DC Resistance (DCR):	46.3mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max):	0.118" (3.00mm)
