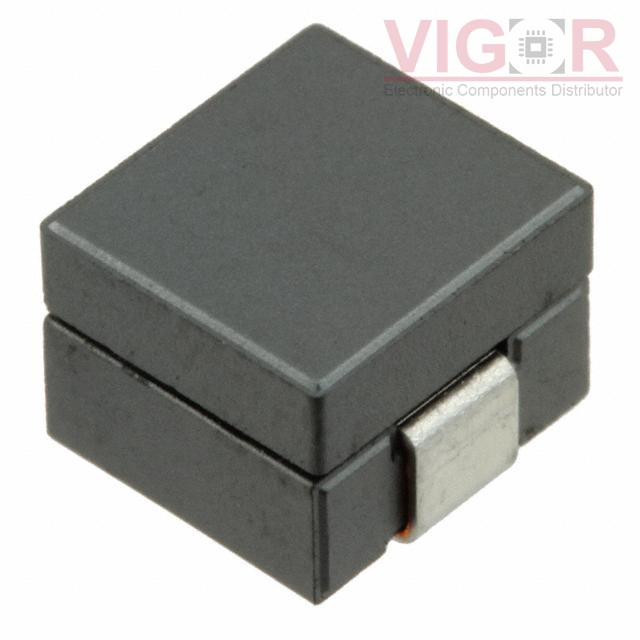

VLB7050HT-R15M

Part No :: VLB7050HT-R15M

Manufacturer: TDK Corporation

VIGOR # :: 1622583

Description: FIXED IND 150NH 36A 0.27 MOHM

Catalog: Fixed Inductors

DataSheet: VLB7050HT-R15M PDF

Country of origin: -

Date code: -

VLB7050HT-R15M Specifications

Type	Description
Series:	VLB
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	150 nH
Tolerance:	±20%
Current Rating (Amps):	36 A
Current - Saturation (Isat):	37A
Shielding:	Unshielded
DC Resistance (DCR):	0.27mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.268" L x 0.264" W (6.80mm x 6.70mm)
Height - Seated (Max):	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 227

Shipped from

HK warehouse

Expected Shipping Date

Jan 04 - Jan 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.89~~	~~$2.89~~
500	~~USD 1,68~~	~~$842.32~~
1000	~~$1.58~~	~~$1 579.35~~
2500	~~$1.53~~	~~$3 816.75~~
5000	~~$1.47~~	~~$7 370.30~~

Current price of VLB7050HT-R15M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
