SRP1038A-R22M

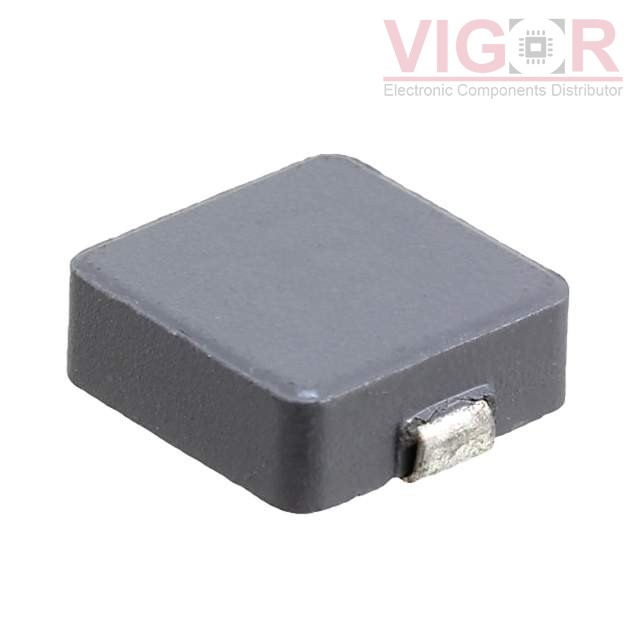

Image is for reference,
please contact us to get the real picture

Part No :: SRP1038A-R22M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 220NH 35A 1 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRP1038A-R22M PDF

Availability: 478 pieces

Unit Price: ~~$1.62000~~

Current price of SRP1038A-R22M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRP1038A-R22M Specifications

Type	Description
Series:	SRP1038A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Carbonyl Powder
Inductance:	220 nH
Tolerance:	±20%
Current Rating (Amps):	35 A
Current - Saturation (Isat):	60A
Shielding:	Shielded
DC Resistance (DCR):	1mOhm Max
Q @ Freq:	10 @ 100kHz
Frequency - Self Resonant:	155MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max):	0.157" (4.00mm)
