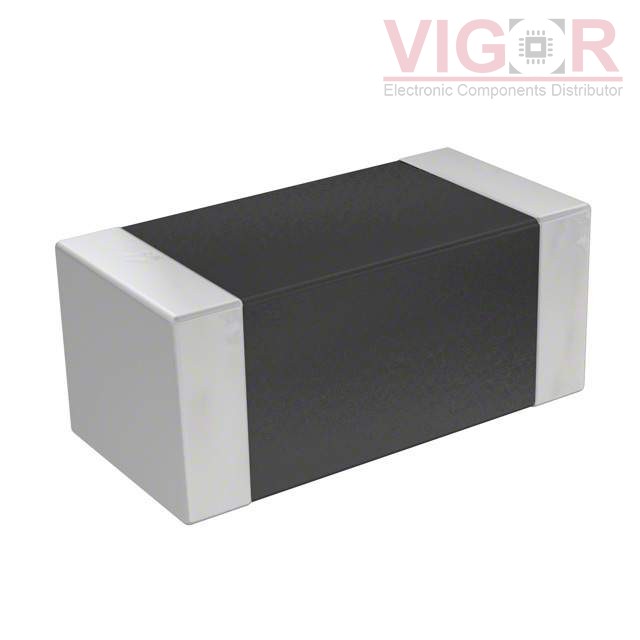

ILSB1206ER180K

Part No :: ILSB1206ER180K

Manufacturer: Vishay / Dale

VIGOR # :: 1623828

Description: FIXED IND 18UH 5MA 700 MOHM SMD

Catalog: Fixed Inductors

DataSheet: ILSB1206ER180K PDF

Country of origin: -

Date code: -

ILSB1206ER180K Specifications

Type	Description
Series:	ILSB-1206
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	18 µH
Tolerance:	±10%
Current Rating (Amps):	5 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	700mOhm Max
Q @ Freq:	45 @ 1MHz
Frequency - Self Resonant:	21MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric)
Supplier Device Package:	1206
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.055" (1.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Feb 08 - Feb 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.10~~	~~$0.10~~
3000	~~$0.10~~	~~$289.17~~
6000	~~$0.09~~	~~$544.32~~
15000	~~$0.09~~	~~$1 318.35~~
30000	~~$0.09~~	~~$2 551.80~~
75000	~~$0.08~~	~~$6 165.75~~

Current price of ILSB1206ER180K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
