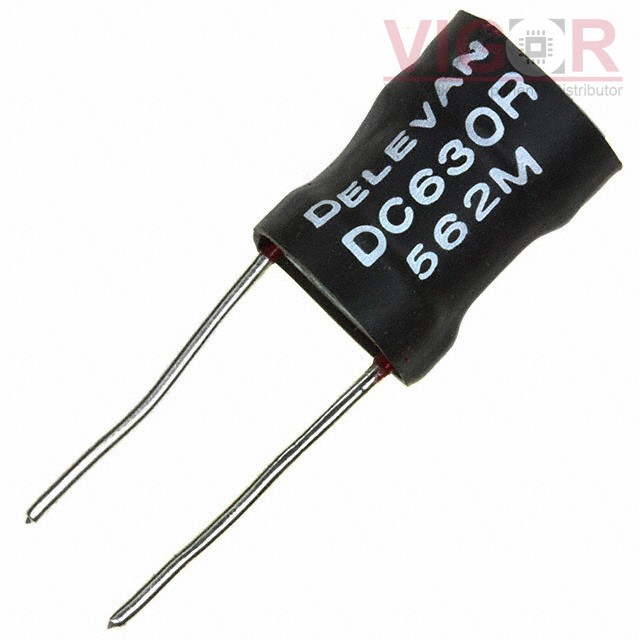

DC630R-562M

Part No :: DC630R-562M

Manufacturer: API Delevan

Description: FIXED IND 5.6UH 11.7A 7 MOHM TH

Catalog: Fixed Inductors

DataSheet: DC630R-562M PDF

Availability: 19 pieces

Current price of DC630R-562M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DC630R-562M Specifications

Type	Description
Series:	DC630R
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	5.6 µH
Tolerance:	±20%
Current Rating (Amps):	11.7 A
Current - Saturation (Isat):	29A
Shielding:	Unshielded
DC Resistance (DCR):	7mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	10 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.630" Dia (16.00mm)
Height - Seated (Max):	0.830" (21.08mm)

Please confirm the specifications of the products when ordering.
