Part No :

EXL1V0603-R56-R

Manufacturer
PowerStor (Eaton)
VIGOR # :

1624428

Description
IND POWDER 0.56UH 25A
Catalog
Fixed Inductors
DataSheet
EXL1V0603-R56-R PDF
Country of origin
-
Date code
-
ads
Type Description
Series:EXL1V0603
Package:Tape & Reel (TR)
Part Status:Active
Type:Molded
Material - Core:Iron Powder
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):22 A
Current - Saturation (Isat):25A
Shielding:Shielded
DC Resistance (DCR):3.31mOhm Max
Q @ Freq:-
Frequency - Self Resonant:70MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.283" L x 0.272" W (7.20mm x 6.90mm)
Height - Seated (Max):0.118" (3.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Shipped from
HK warehouse
Expected Shipping Date
Dec 29 - Jan 02 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.41 $0.41

Current price of EXL1V0603-R56-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

0402HP-2N2EJTS

0402HP-2N2EJTS

FIXED IND 2.2NH 2.1A 38 MOHM SMD

0402HM-620EKTS

0402HM-620EKTS

FIXED IND 62NH 145MA 1.82OHM SMD

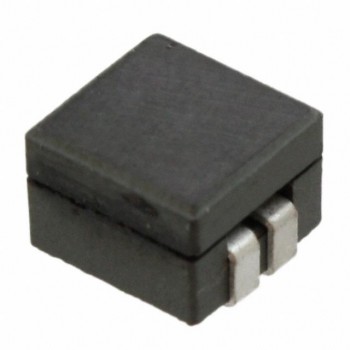

FPT705-190-R
