784775112

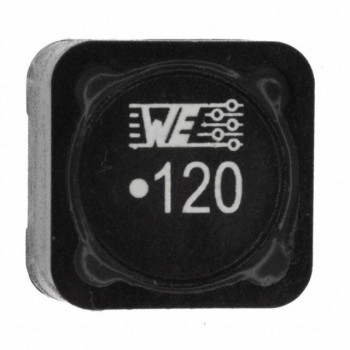

Image is for reference,
please contact us to get the real picture

Part No :: 784775112

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 12UH 2.18A 80 MOHM SMD

Catalog: Fixed Inductors

DataSheet: 784775112 PDF

Availability: 0 pieces

Unit Price: ~~$1.47800~~

Current price of 784775112 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

784775112 Specifications

Type	Description
Series:	WE-PD2A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	12 µH
Tolerance:	±20%
Current Rating (Amps):	2.18 A
Current - Saturation (Isat):	2.23A
Shielding:	Unshielded
DC Resistance (DCR):	80mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	20MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	10 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	7850
Size / Dimension:	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max):	0.217" (5.50mm)
