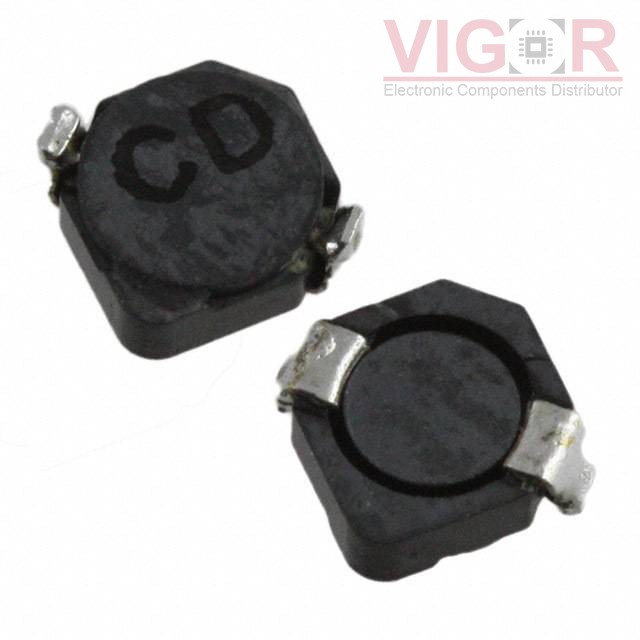

CDRH2D11/HPNP-100NC

Image is for reference,
please contact us to get the real picture

Part No :: CDRH2D11/HPNP-100NC

Manufacturer: Sumida Corporation

Description: FIXED IND 10UH 520MA 559 MOHM

Catalog: Fixed Inductors

DataSheet: CDRH2D11/HPNP-100NC PDF

Availability: 10 pieces

Unit Price: ~~$0.60000~~

Current price of CDRH2D11/HPNP-100NC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDRH2D11/HPNP-100NC Specifications

Type	Description
Series:	CDRH2D11/HP
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	10 µH
Tolerance:	±30%
Current Rating (Amps):	520 mA
Current - Saturation (Isat):	520mA
Shielding:	Shielded
DC Resistance (DCR):	559mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max):	0.043" (1.10mm)

Please confirm the specifications of the products when ordering.
