5022-752F

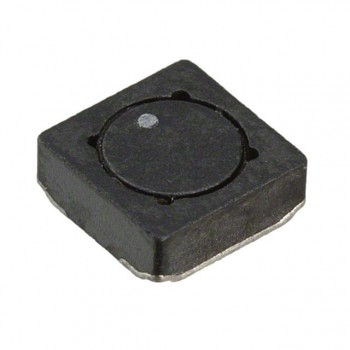

Image is for reference,
please contact us to get the real picture

Part No :: 5022-752F

Manufacturer: API Delevan

Description: FIXED IND 7.5UH 765MA 550 MOHM

Catalog: Fixed Inductors

DataSheet: 5022-752F PDF

Availability: 0 pieces

Unit Price: ~~$6.51358~~

Current price of 5022-752F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5022-752F Specifications

Type	Description
Series:	5022
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Iron
Inductance:	7.5 µH
Tolerance:	±1%
Current Rating (Amps):	765 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	550mOhm Max
Q @ Freq:	50 @ 7.9MHz
Frequency - Self Resonant:	55MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	7.9 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max):	0.230" (5.80mm)
