LMXN2216M2R2BTAS

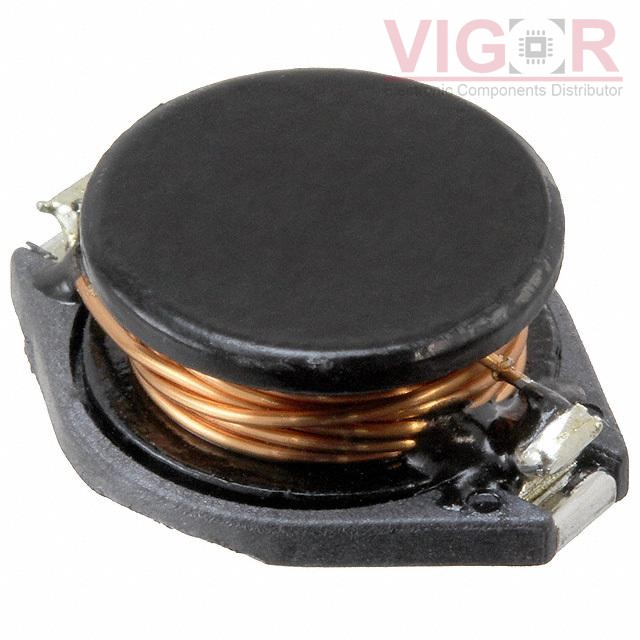

Image is for reference,
please contact us to get the real picture

Part No :: LMXN2216M2R2BTAS

Manufacturer: Elco (AVX)

Description: FIXED IND 2.2UH 6 MOHM SMD

Catalog: Fixed Inductors

DataSheet: LMXN2216M2R2BTAS PDF

Availability: 0 pieces

Unit Price: ~~$1.73400~~

Current price of LMXN2216M2R2BTAS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LMXN2216M2R2BTAS Specifications

Type	Description
Series:	LMXN
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	-
Current - Saturation (Isat):	20A
Shielding:	Unshielded
DC Resistance (DCR):	6mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.880" L x 0.640" W (22.35mm x 16.26mm)
Height - Seated (Max):	0.315" (8.00mm)
