VLS252015ET-2R2M

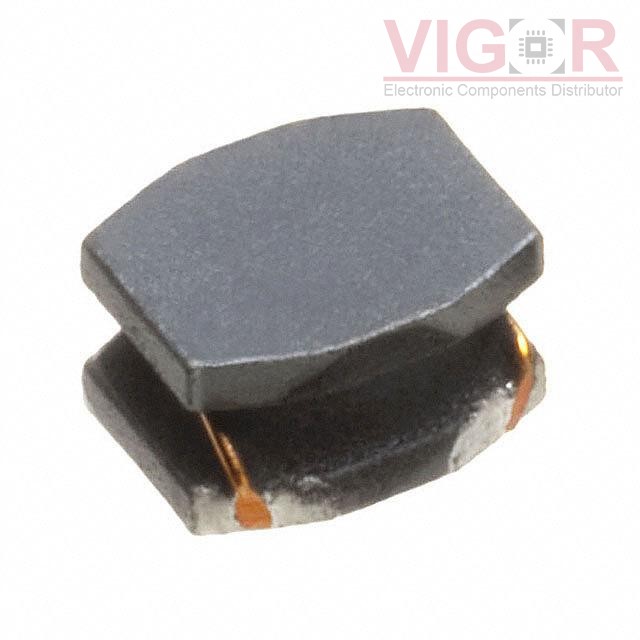

Image is for reference,
please contact us to get the real picture

Part No :: VLS252015ET-2R2M

Manufacturer: TDK Corporation

Description: FIXED IND 2.2UH 1.25A 160 MOHM

Catalog: Fixed Inductors

DataSheet: VLS252015ET-2R2M PDF

Availability: 11278 pieces

Unit Price: ~~$0.38000~~

Current price of VLS252015ET-2R2M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VLS252015ET-2R2M Specifications

Type	Description
Series:	VLS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	1.25 A
Current - Saturation (Isat):	1.5A
Shielding:	Shielded
DC Resistance (DCR):	160mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008 (2520 Metric)
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.039" (1.00mm)
