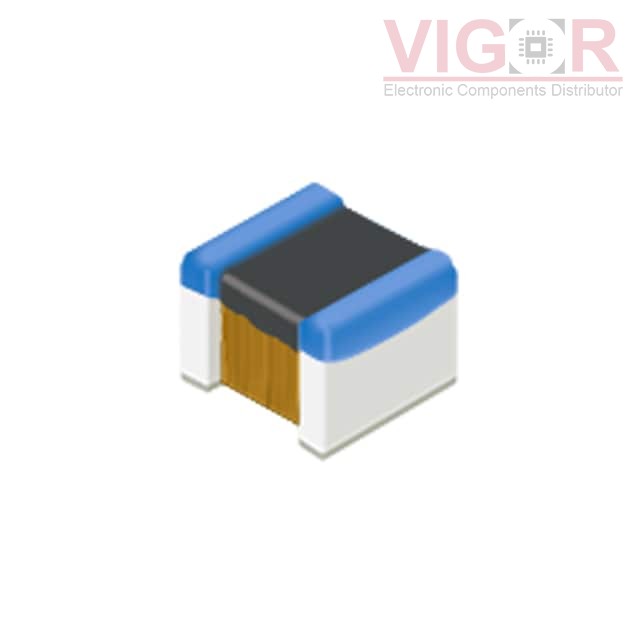

LQW2UASR56J0CL

Part No :: LQW2UASR56J0CL

Manufacturer: TOKO / Murata

Description: FIXED IND 560NH 400MA 1.33 OHM

Catalog: Fixed Inductors

DataSheet: LQW2UASR56J0CL PDF

Availability: 1710 pieces

Current price of LQW2UASR56J0CL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LQW2UASR56J0CL Specifications

Type	Description
Series:	LQW2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Non-Magnetic
Inductance:	560 nH
Tolerance:	±5%
Current Rating (Amps):	400 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.33Ohm Max
Q @ Freq:	45 @ 100MHz
Frequency - Self Resonant:	415MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	25 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008
Size / Dimension:	0.103" L x 0.096" W (2.62mm x 2.45mm)
Height - Seated (Max):	0.080" (2.03mm)
