0830CDMCCDS-R22MC

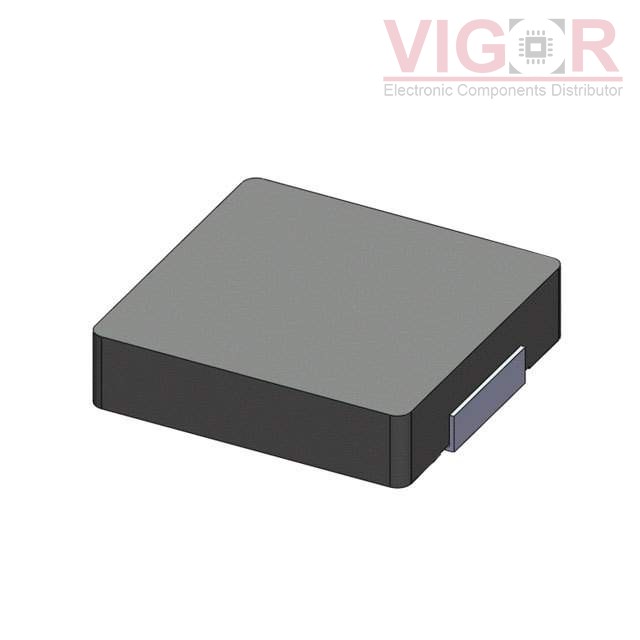

Image is for reference,
please contact us to get the real picture

Part No :: 0830CDMCCDS-R22MC

Manufacturer: Sumida Corporation

Description: FIXED IND 220NH 27A 2.3 MOHM SMD

Catalog: Fixed Inductors

DataSheet: 0830CDMCCDS-R22MC PDF

Availability: 1997 pieces

Unit Price: ~~$1.02000~~

Current price of 0830CDMCCDS-R22MC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0830CDMCCDS-R22MC Specifications

Type	Description
Series:	0830CDMCC/DS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	Metal
Inductance:	220 nH
Tolerance:	±20%
Current Rating (Amps):	27 A
Current - Saturation (Isat):	36A
Shielding:	Shielded
DC Resistance (DCR):	2.3mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.319" L x 0.307" W (8.10mm x 7.80mm)
Height - Seated (Max):	0.118" (3.00mm)

Please confirm the specifications of the products when ordering.
