SH150C-2.22-114

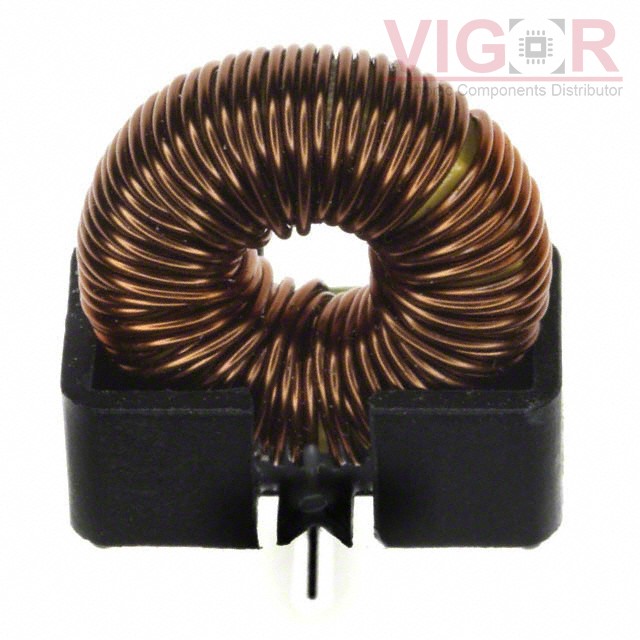

Image is for reference,
please contact us to get the real picture

Part No :: SH150C-2.22-114

Manufacturer: Amgis

Description: FIXED IND 114UH 2.22A 100 MOHM

Catalog: Fixed Inductors

DataSheet: SH150C-2.22-114 PDF

Availability: 0 pieces

Unit Price: ~~$7.23000~~

Current price of SH150C-2.22-114 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SH150C-2.22-114 Specifications

Type	Description
Series:	SH150
Package:	Tray
Part Status:	Active
Type:	Toroidal
Material - Core:	Iron Powder
Inductance:	114 µH
Tolerance:	±20%
Current Rating (Amps):	2.22 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	100mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	10 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical (Open)
Supplier Device Package:	-
Size / Dimension:	0.827" L x 0.449" W (21.00mm x 11.40mm)
Height - Seated (Max):	0.937" (23.80mm)
