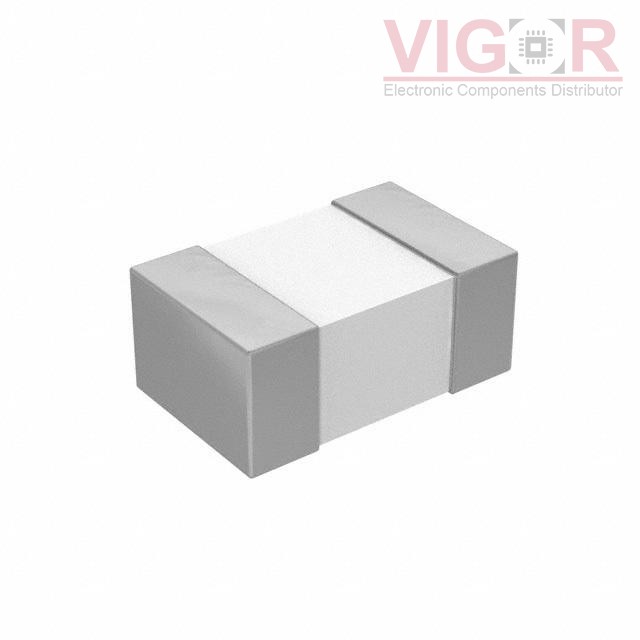

AIMC-0805-R15J-T

Part No :: AIMC-0805-R15J-T

Manufacturer: Abracon

Description: FIXED IND 150NH 300MA 1 OHM SMD

Catalog: Fixed Inductors

DataSheet: AIMC-0805-R15J-T PDF

Availability: 3270 pieces

Current price of AIMC-0805-R15J-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AIMC-0805-R15J-T Specifications

Type	Description
Series:	AIMC-0805
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Multilayer
Material - Core:	Ceramic
Inductance:	150 nH
Tolerance:	±5%
Current Rating (Amps):	300 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1Ohm Max
Q @ Freq:	13 @ 50MHz
Frequency - Self Resonant:	500MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	50 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.041" (1.05mm)
