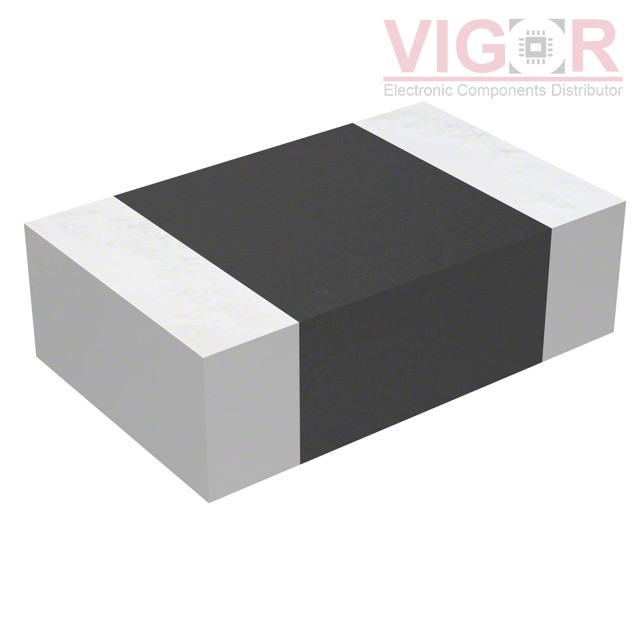

ASMPL-0805-2R2N-T

Part No :: ASMPL-0805-2R2N-T

Manufacturer: Abracon

Description: FIXED IND 2.2UH 600MA 400 MOHM

Catalog: Fixed Inductors

DataSheet: ASMPL-0805-2R2N-T PDF

Availability: 0 pieces

Current price of ASMPL-0805-2R2N-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ASMPL-0805-2R2N-T Specifications

Type	Description
Series:	ASMPL
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ceramic
Inductance:	2.2 µH
Tolerance:	±30%
Current Rating (Amps):	600 mA
Current - Saturation (Isat):	350mA
Shielding:	Unshielded
DC Resistance (DCR):	400mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	30MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.024" (0.60mm)
