LQG15WZ1N7S02D

Part No :: LQG15WZ1N7S02D

Manufacturer: TOKO / Murata

VIGOR # :: 1627698

Description: FIXED IND 1.7NH 1A 40 MOHM SMD

Catalog: Fixed Inductors

DataSheet: LQG15WZ1N7S02D PDF

Country of origin: -

Date code: -

LQG15WZ1N7S02D Specifications

Type	Description
Series:	LQG15
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	-
Inductance:	1.7 nH
Tolerance:	±0.3nH
Current Rating (Amps):	1 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	40mOhm Max
Q @ Freq:	23 @ 250MHz
Frequency - Self Resonant:	10GHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	0.022" (0.55mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 9806

Shipped from

HK warehouse

Expected Shipping Date

Jan 06 - Jan 10 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.14~~	~~$0.14~~

Current price of LQG15WZ1N7S02D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

IMC1812ER390K

FIXED IND 39UH 150MA 4.5 OHM SMD

SRP1038C-R10Y

FIXED IND 100NH 53A 0.38MOHM SMD

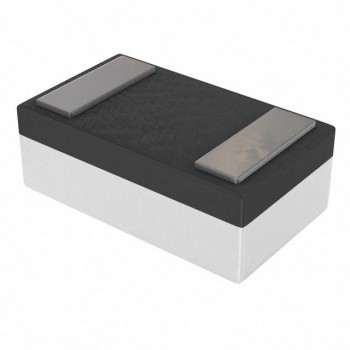

L0402C33NJRMST
