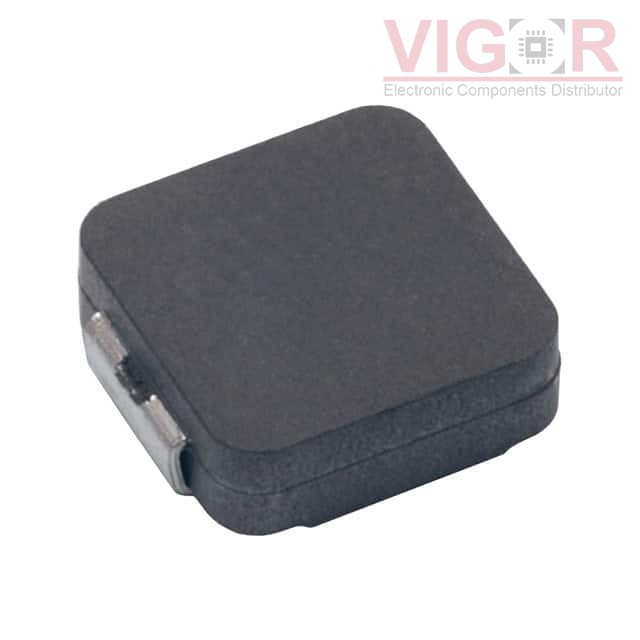

MPX1D0624LR22

Part No :: MPX1D0624LR22

Manufacturer: KEMET

Description: FIXED IND 220NH 19.4A 3.3 MOHM

Catalog: Fixed Inductors

DataSheet: MPX1D0624LR22 PDF

Availability: 3000 pieces

Current price of MPX1D0624LR22 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MPX1D0624LR22 Specifications

Type	Description
Series:	METCOM MPX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal Composite
Inductance:	220 nH
Tolerance:	±20%
Current Rating (Amps):	19.4 A
Current - Saturation (Isat):	29A
Shielding:	Shielded
DC Resistance (DCR):	3.3mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.276" L x 0.256" W (7.00mm x 6.50mm)
Height - Seated (Max):	0.094" (2.40mm)
