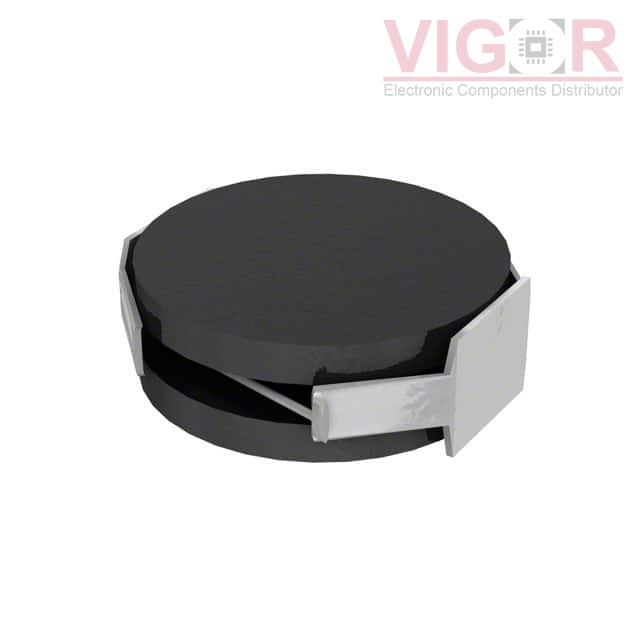

CDH2D09BNP-220MC

Part No :: CDH2D09BNP-220MC

Manufacturer: Sumida Corporation

Description: FIXED IND 22UH 340MA 1.313 OHM

Catalog: Fixed Inductors

DataSheet: CDH2D09BNP-220MC PDF

Availability: 0 pieces

Unit Price: ~~$0.37400~~

Current price of CDH2D09BNP-220MC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDH2D09BNP-220MC Specifications

Type	Description
Series:	CDH2D09B
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	340 mA
Current - Saturation (Isat):	310mA
Shielding:	Unshielded
DC Resistance (DCR):	1.313Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.112" L x 0.106" W (2.85mm x 2.70mm)
Height - Seated (Max):	0.039" (1.00mm)

Please confirm the specifications of the products when ordering.
