0603DC-30NXJRW

Part No :: 0603DC-30NXJRW

Manufacturer: COILCRAFT

VIGOR # :: 1629076

Description: CERAMIC CHIP INDUCTORS 30NH

Catalog: Fixed Inductors

DataSheet: 0603DC-30NXJRW PDF

Country of origin: -

Date code: -

0603DC-30NXJRW Specifications

Type	Description
Series:	0603DC
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	30 nH
Tolerance:	±5%
Current Rating (Amps):	1.73 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	103mOhm Max
Q @ Freq:	77 @ 900MHz
Frequency - Self Resonant:	3GHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603
Size / Dimension:	0.067" L x 0.039" W (1.70mm x 0.99mm)
Height - Seated (Max):	0.035" (0.89mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 4432

Shipped from

HK warehouse

Expected Shipping Date

Jul 19 - Jul 23 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.8900~~	~~$0.89~~

Current price of 0603DC-30NXJRW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

MPX1D1040L2R2

FIXED IND 2.2UH 14.6A 7.9 MOHM

WCLA1005V1-510-R

FIXED IND 51NH 100MA 0.820

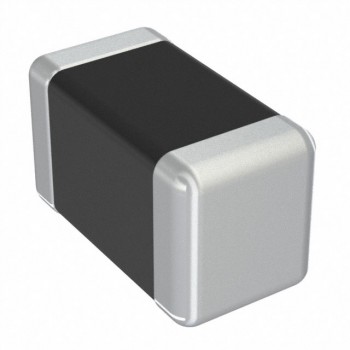

LB3218T680K
