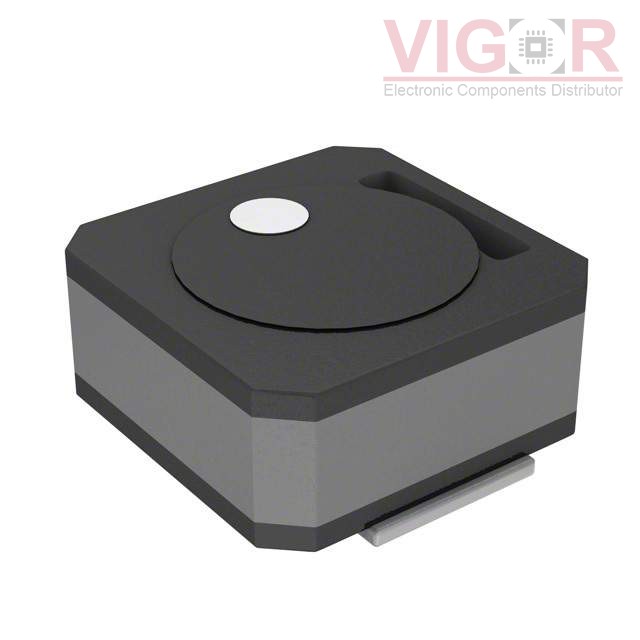

VLCF4020T-2R2N1R7

Part No :: VLCF4020T-2R2N1R7

Manufacturer: TDK Corporation

Description: FIXED IND 2.2UH 1.72A 59 MOHM

Catalog: Fixed Inductors

DataSheet: VLCF4020T-2R2N1R7 PDF

Availability: 20377 pieces

Current price of VLCF4020T-2R2N1R7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VLCF4020T-2R2N1R7 Specifications

Type	Description
Series:	VLCF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±30%
Current Rating (Amps):	1.72 A
Current - Saturation (Isat):	1.72A
Shielding:	Shielded
DC Resistance (DCR):	59mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max):	0.079" (2.00mm)
