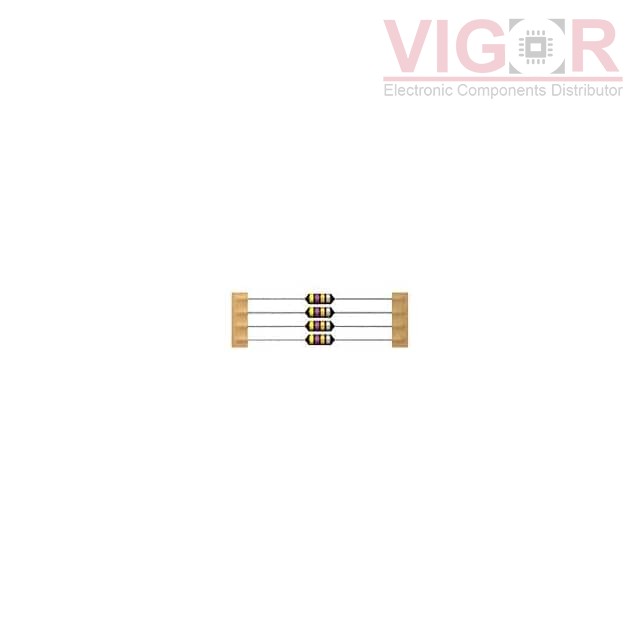

B78108S1822K000

Part No :: B78108S1822K000

Manufacturer: TDK EPCOS

Description: FIXED IND 8.2UH 690MA 480 MOHM

Catalog: Fixed Inductors

DataSheet: B78108S1822K000 PDF

Availability: 0 pieces

Current price of B78108S1822K000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B78108S1822K000 Specifications

Type	Description
Series:	BC
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	8.2 µH
Tolerance:	±10%
Current Rating (Amps):	690 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	480mOhm Max
Q @ Freq:	65 @ 7.96MHz
Frequency - Self Resonant:	50MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.157" Dia x 0.362" L (4.00mm x 9.20mm)
Height - Seated (Max):	-

Please confirm the specifications of the products when ordering.
