CB2518T220KV

Part No :: CB2518T220KV

Manufacturer: TAIYO YUDEN

VIGOR # :: 1629569

Description: FIXED IND 22UH 390MA 650 MOHM

Catalog: Fixed Inductors

DataSheet: CB2518T220KV PDF

Country of origin: -

Date code: -

CB2518T220KV Specifications

Type	Description
Series:	CB
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±10%
Current Rating (Amps):	390 mA
Current - Saturation (Isat):	165mA
Shielding:	Unshielded
DC Resistance (DCR):	650mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	19MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1007 (2518 Metric)
Supplier Device Package:	1007 (2518 Metric)
Size / Dimension:	0.098" L x 0.071" W (2.50mm x 1.80mm)
Height - Seated (Max):	0.079" (2.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1380

Shipped from

HK warehouse

Expected Shipping Date

Jan 18 - Jan 22 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.30~~	~~$0.30~~
2000	~~$0.12~~	~~$239.60~~
4000	~~$0.11~~	~~$452.56~~
6000	~~$0.11~~	~~$638.94~~
10000	~~$0.10~~	~~$1 031.70~~
50000	~~$0.10~~	~~$4 825.50~~
100000	~~$0.09~~	~~$9 318.00~~

Current price of CB2518T220KV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

9230-58-RC

FIXED IND 39UH 180MA 3.6 OHM TH

IMC1210BN39NK

FIXED IND 39NH 530MA 270 MOHM

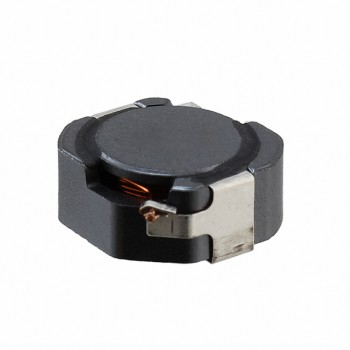

CLF12555T-2R2N-D
