LQH32MN470K23L

Part No :: LQH32MN470K23L

Manufacturer: TOKO / Murata

VIGOR # :: 1629649

Description: FIXED IND 47UH 100MA 4.3 OHM SMD

Catalog: Fixed Inductors

DataSheet: LQH32MN470K23L PDF

Country of origin: -

Date code: -

LQH32MN470K23L Specifications

Type	Description
Series:	LQH32
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	47 µH
Tolerance:	±10%
Current Rating (Amps):	100 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	4.3Ohm Max
Q @ Freq:	40 @ 1MHz
Frequency - Self Resonant:	11MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	1210 (3225 Metric)
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.087" (2.20mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 950

Shipped from

HK warehouse

Expected Shipping Date

Oct 22 - Oct 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.2900~~	~~$0.29~~
2000	~~USD 0,12~~	~~$232.56~~
4000	~~$0.1098~~	~~$439.28~~
6000	~~$0.1034~~	~~$620.16~~
10000	~~$0.1001~~	~~$1 001.30~~
50000	~~$0.0937~~	~~$4 683.50~~
100000	~~$0.0904~~	~~$9 044.00~~

Current price of LQH32MN470K23L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

PA5003.801NLT

FIXED IND 800NH 13.1A 5.65 MOHM

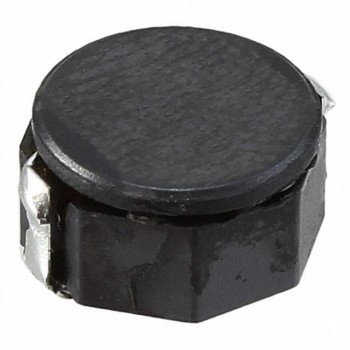

CDRH8D43HPNP-1R2NC

FIXED IND 1.2UH 5.6A 16.5 MOHM

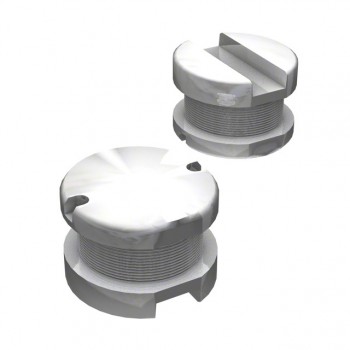

SDR0603-820KL
