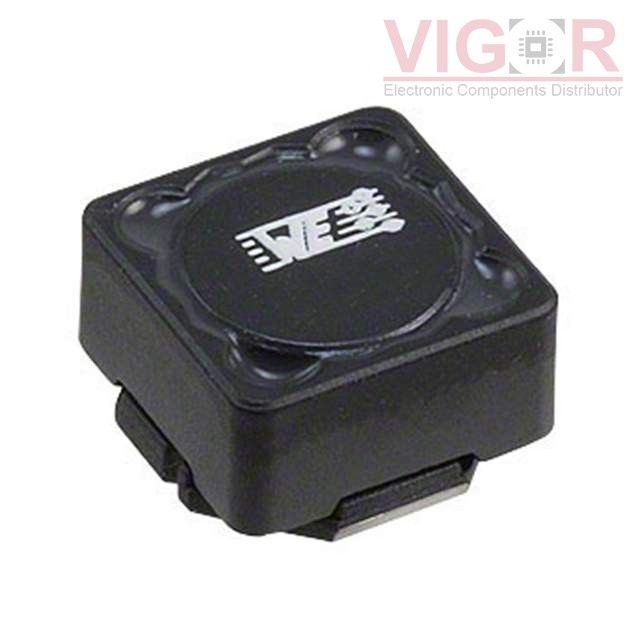

7687714681

Part No :: 7687714681

Manufacturer: Würth Elektronik Midcom

VIGOR # :: 1630055

Description: FIXED IND 680UH 550MA 2.25 OHM

Catalog: Fixed Inductors

DataSheet: 7687714681 PDF

Country of origin: -

Date code: -

7687714681 Specifications

Type	Description
Series:	WE-PD HV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	680 µH
Tolerance:	±20%
Current Rating (Amps):	550 mA
Current - Saturation (Isat):	610mA
Shielding:	Shielded
DC Resistance (DCR):	2.25Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	2MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max):	0.236" (6.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 486

Shipped from

HK warehouse

Expected Shipping Date

Oct 22 - Oct 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.5600~~	~~$2.56~~
500	~~USD 1,85~~	~~$924.00~~

Current price of 7687714681 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

LQW15AN27NG00D

FIXED IND 27NH 280MA 520 MOHM

MLG0603S15NJT000

FIXED IND 15NH 180MA 1.1 OHM SMD

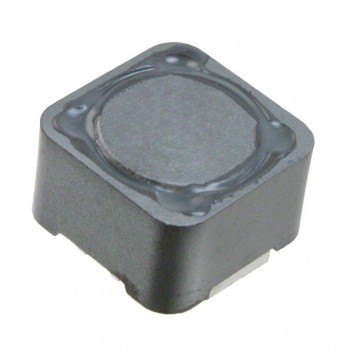

B82477G4222M000
