IMC1812ER220J

Part No :: IMC1812ER220J

Manufacturer: Vishay / Dale

VIGOR # :: 1630073

Description: FIXED IND 22UH 180MA 3.2 OHM SMD

Catalog: Fixed Inductors

DataSheet: IMC1812ER220J PDF

Country of origin: -

Date code: -

IMC1812ER220J Specifications

Type	Description
Series:	IMC-1812
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Iron Powder
Inductance:	22 µH
Tolerance:	±5%
Current Rating (Amps):	180 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3.2Ohm Max
Q @ Freq:	50 @ 2.52MHz
Frequency - Self Resonant:	13MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.134" (3.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 08 - Apr 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.7858~~	~~$0.79~~
1000	~~$0.7858~~	~~$785.85~~
2500	~~$0.7605~~	~~$1 901.25~~
5000	~~$0.7352~~	~~$3 675.75~~
12500	~~$0.7098~~	~~$8 872.50~~

Current price of IMC1812ER220J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

MPL-AY3020-8R2

FIXED IND 8.2UH 1.4A 345 MOHM

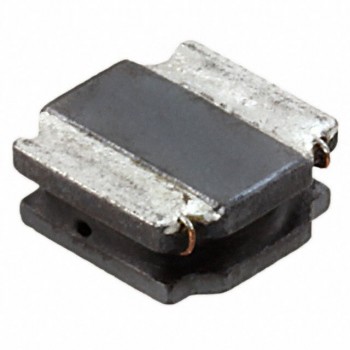

74404063680

FIXED IND 68UH 860MA 360 MOHM

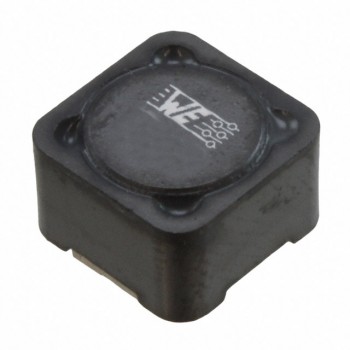

74477007
