Part No :

ISC1812ESR56K

Manufacturer
Vishay / Dale
VIGOR # :

1630211

Description
FIXED IND 560NH 306MA 750 MOHM
Catalog
Fixed Inductors
DataSheet
ISC1812ESR56K PDF
Country of origin
-
Date code
-
ads
Type Description
Series:ISC-1812
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Non-Magnetic
Inductance:560 nH
Tolerance:±10%
Current Rating (Amps):306 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):750mOhm Max
Q @ Freq:30 @ 25.2MHz
Frequency - Self Resonant:205MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:25.2 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric)
Supplier Device Package:1812
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.134" (3.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Shipped from
HK warehouse
Expected Shipping Date
Dec 31 - Jan 04 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.40 $0.40
2000 $0.40 $800.00
4000 $0.39 $1 550.00
6000 $0.38 $2 250.00
10000 $0.36 $3 625.00

Current price of ISC1812ESR56K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

0402DC-47NXJRW

0402DC-47NXJRW

CERAMIC CHIP INDUCTORS, 47.0NH

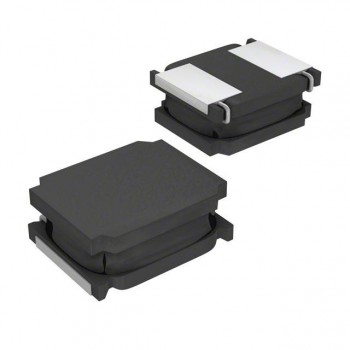

74404024033
