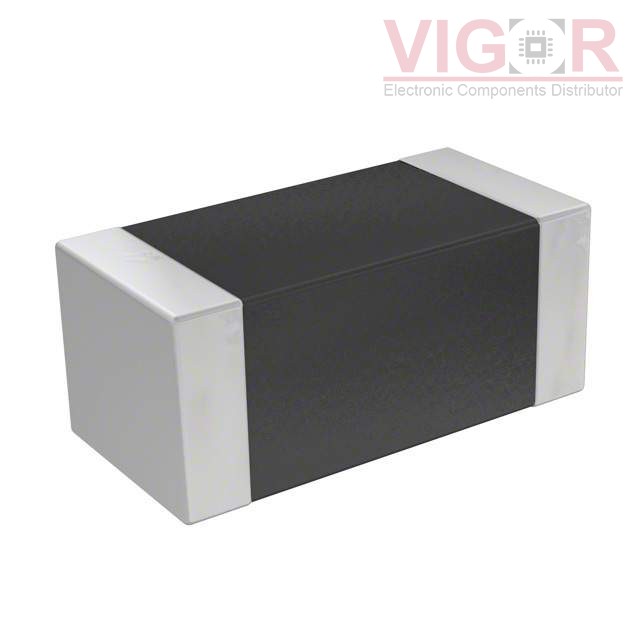

ILSB1206ER100K

Part No :: ILSB1206ER100K

Manufacturer: Vishay / Dale

Description: FIXED IND 10UH 25MA 1 OHM SMD

Catalog: Fixed Inductors

DataSheet: ILSB1206ER100K PDF

Availability: 191194 pieces

Current price of ILSB1206ER100K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ILSB1206ER100K Specifications

Type	Description
Series:	ILSB-1206
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	10 µH
Tolerance:	±10%
Current Rating (Amps):	25 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	1Ohm Max
Q @ Freq:	45 @ 2MHz
Frequency - Self Resonant:	28MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric)
Supplier Device Package:	1206
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.055" (1.40mm)
