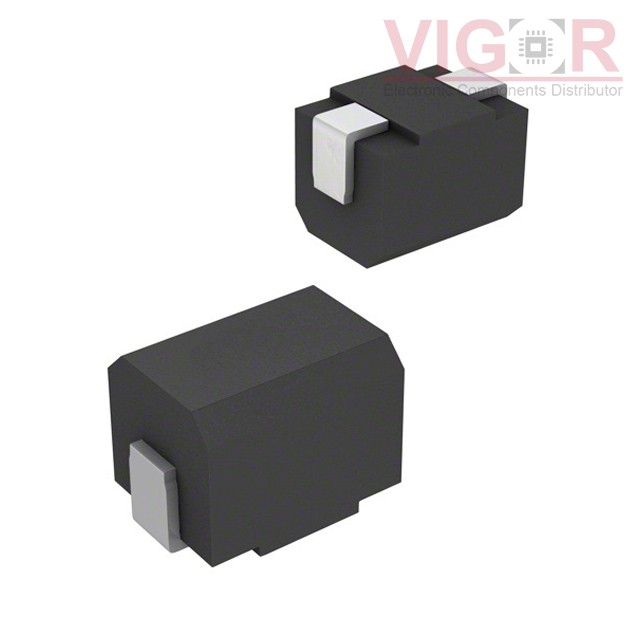

3613CR22M

Part No :: 3613CR22M

Manufacturer: TE Connectivity AMP Connectors

Description: FIXED IND 220NH 665MA 250 MOHM

Catalog: Fixed Inductors

DataSheet: 3613CR22M PDF

Availability: 1419 pieces

Current price of 3613CR22M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

3613CR22M Specifications

Type	Description
Series:	3613C, Sigma Inductors
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	220 nH
Tolerance:	±20%
Current Rating (Amps):	665 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	250mOhm Max
Q @ Freq:	40 @ 25.2MHz
Frequency - Self Resonant:	200MHz
Ratings:	-
Operating Temperature:	-30°C ~ 100°C
Inductance Frequency - Test:	25.2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.134" (3.40mm)

Please confirm the specifications of the products when ordering.
