SDR0403-271KL

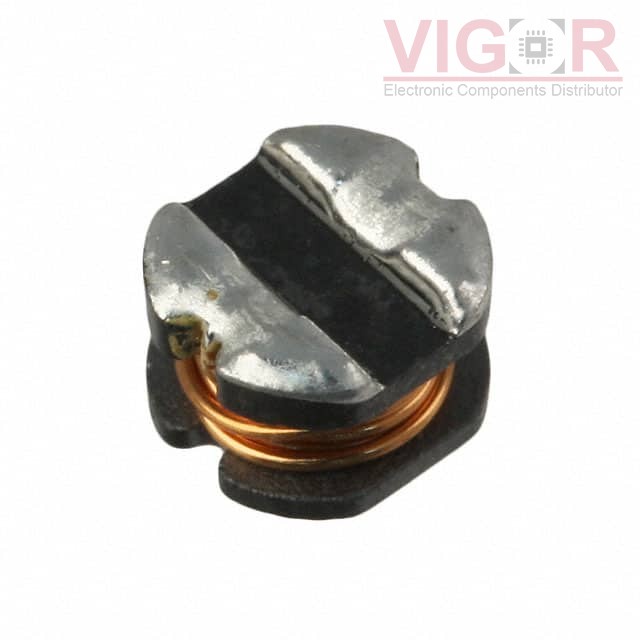

Image is for reference,
please contact us to get the real picture

Part No :: SDR0403-271KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 270UH 200MA 5 OHM SMD

Catalog: Fixed Inductors

DataSheet: SDR0403-271KL PDF

Availability: 2000 pieces

Unit Price: ~~$0.57000~~

Current price of SDR0403-271KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SDR0403-271KL Specifications

Type	Description
Series:	SDR0403
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	270 µH
Tolerance:	±10%
Current Rating (Amps):	200 mA
Current - Saturation (Isat):	300mA
Shielding:	Unshielded
DC Resistance (DCR):	5Ohm Max
Q @ Freq:	45 @ 796kHz
Frequency - Self Resonant:	3MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max):	0.138" (3.50mm)
