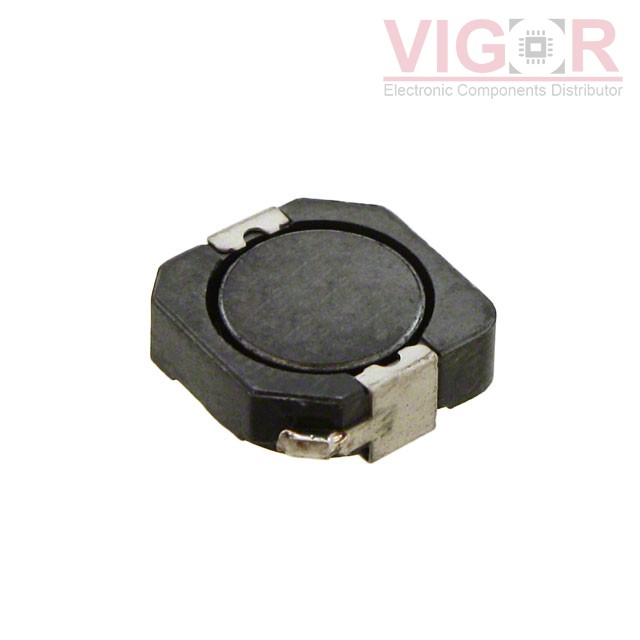

PF0560.152NL

Part No :: PF0560.152NL

Manufacturer: PulseLarsen Antenna

Description: FIXED IND 1.5UH 6.5A 8.1 MOHM

Catalog: Fixed Inductors

DataSheet: PF0560.152NL PDF

Availability: 0 pieces

Current price of PF0560.152NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PF0560.152NL Specifications

Type	Description
Series:	PF0560NL
Package:	Tray
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	1.5 µH
Tolerance:	±30%
Current Rating (Amps):	6.5 A
Current - Saturation (Isat):	10A
Shielding:	Shielded
DC Resistance (DCR):	8.1mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	40MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.409" L x 0.406" W (10.40mm x 10.30mm)
Height - Seated (Max):	0.157" (4.00mm)
