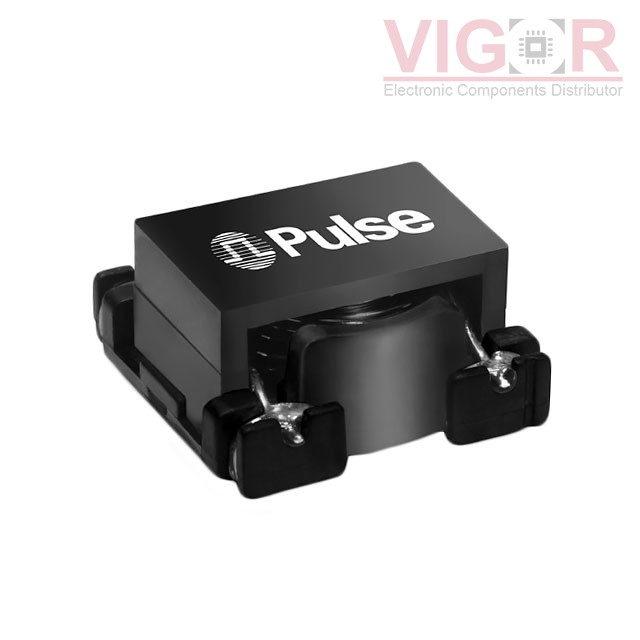

PD0120.113NL

Part No :: PD0120.113NL

Manufacturer: PulseLarsen Antenna

Description: FIXED IND 12.2UH 7.6A 16 MOHM

Catalog: Fixed Inductors

DataSheet: PD0120.113NL PDF

Availability: 487 pieces

Current price of PD0120.113NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PD0120.113NL Specifications

Type	Description
Series:	PD0120NL
Package:	Tray
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	12.2 µH
Tolerance:	±10%
Current Rating (Amps):	7.6 A
Current - Saturation (Isat):	9A
Shielding:	Unshielded
DC Resistance (DCR):	16mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	-
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.638" L x 0.628" W (16.20mm x 15.95mm)
Height - Seated (Max):	0.323" (8.20mm)

Please confirm the specifications of the products when ordering.
