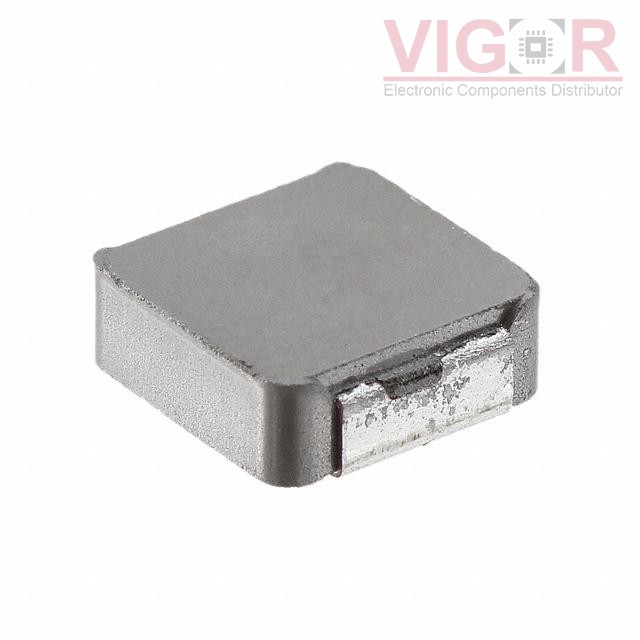

IHLP3232CZER100M01

Image is for reference,
please contact us to get the real picture

Part No :: IHLP3232CZER100M01

Manufacturer: Vishay / Dale

Description: FIXED IND 10UH 4.7A 71.2 MOHM

Catalog: Fixed Inductors

DataSheet: IHLP3232CZER100M01 PDF

Availability: 5523 pieces

Unit Price: ~~$1.36000~~

Current price of IHLP3232CZER100M01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IHLP3232CZER100M01 Specifications

Type	Description
Series:	IHLP-3232CZ-01
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	-
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	4.7 A
Current - Saturation (Isat):	8.2A
Shielding:	Shielded
DC Resistance (DCR):	71.2mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	15MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max):	0.118" (3.00mm)
