744771122

744771122

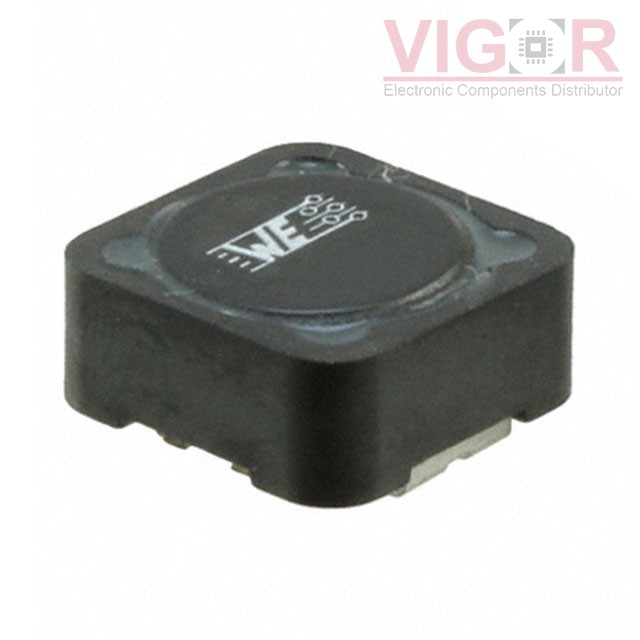

Image is for reference,
please contact us to get the real picture

Part No :

744771122

Manufacturer
Würth Elektronik Midcom
Description
FIXED IND 22UH 3.37A 36 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Nov 12 - Nov 16 2025
DataSheet
744771122 PDF
Availability
0 pieces
Unit Price
$2.12000

Current price of 744771122 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744771122 Specifications
Type Description
Series:WE-PD
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):3.37 A
Current - Saturation (Isat):3.77A
Shielding:Shielded
DC Resistance (DCR):36mOhm Max
Q @ Freq:-
Frequency - Self Resonant:13.5MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max):0.236" (6.00mm)
