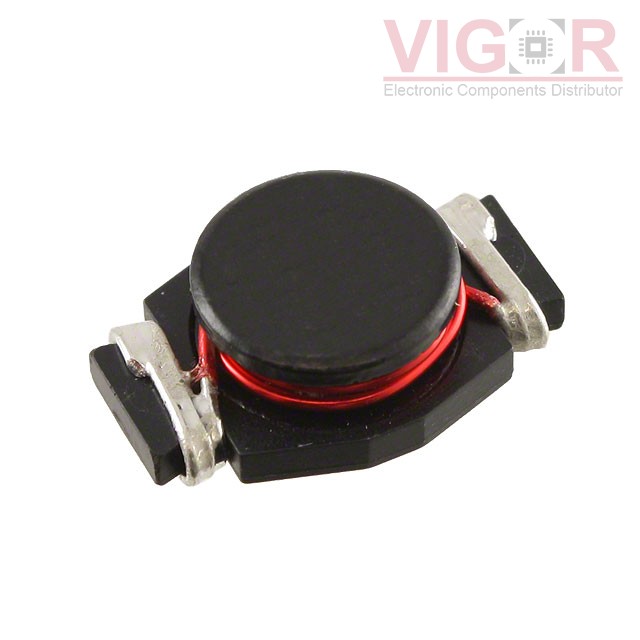

UP4B-100-R

Part No :: UP4B-100-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 10UH 6.8A 15 MOHM SMD

Catalog: Fixed Inductors

DataSheet: UP4B-100-R PDF

Availability: 0 pieces

Current price of UP4B-100-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

UP4B-100-R Specifications

Type	Description
Series:	UNI-PAC™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	6.8 A
Current - Saturation (Isat):	11.5A
Shielding:	Unshielded
DC Resistance (DCR):	15mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.870" L x 0.591" W (22.10mm x 15.00mm)
Height - Seated (Max):	0.310" (7.87mm)

Please confirm the specifications of the products when ordering.
