CDH53NP-120LC

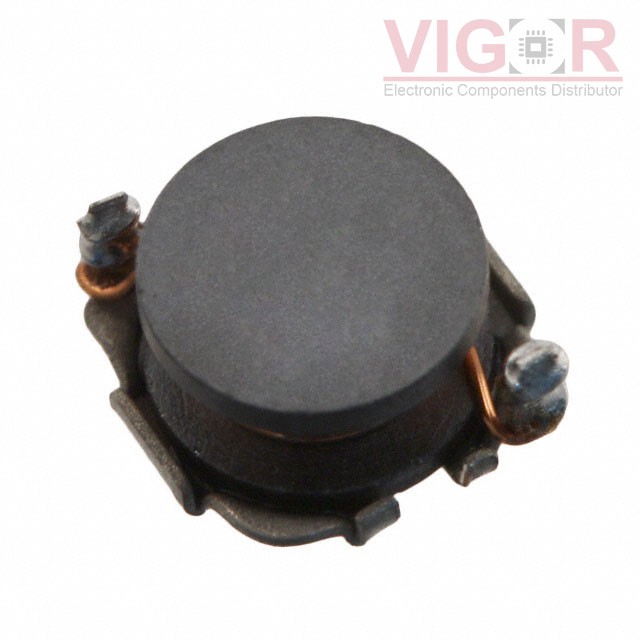

Image is for reference,
please contact us to get the real picture

Part No :: CDH53NP-120LC

Manufacturer: Sumida Corporation

Description: FIXED IND 12UH 1.12A 180 MOHM

Catalog: Fixed Inductors

DataSheet: CDH53NP-120LC PDF

Availability: 0 pieces

Unit Price: ~~$0.31960~~

Current price of CDH53NP-120LC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDH53NP-120LC Specifications

Type	Description
Series:	CDH53
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	12 µH
Tolerance:	±15%
Current Rating (Amps):	1.12 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	180mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 100°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.236" L x 0.205" W (6.00mm x 5.20mm)
Height - Seated (Max):	0.126" (3.20mm)
