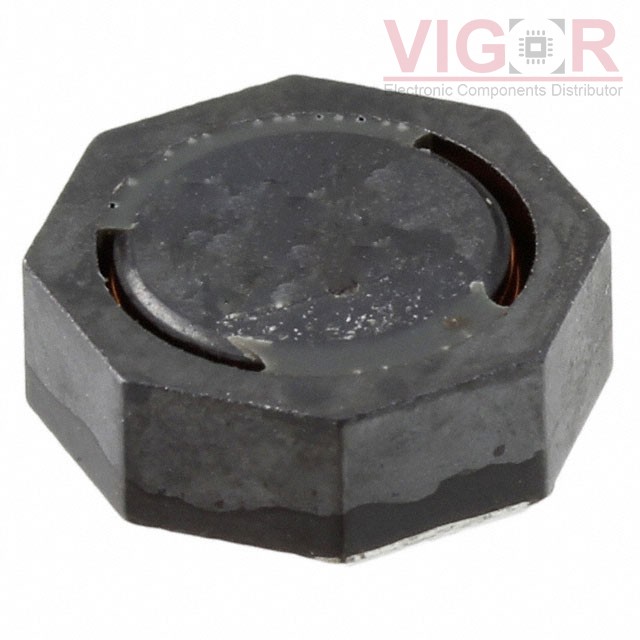

PM104SH-151-RC

Part No :: PM104SH-151-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 150UH 900MA 358MOHM SM

Catalog: Fixed Inductors

DataSheet: PM104SH-151-RC PDF

Availability: 0 pieces

Current price of PM104SH-151-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PM104SH-151-RC Specifications

Type	Description
Series:	PM104SH
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	150 µH
Tolerance:	±30%
Current Rating (Amps):	900 mA
Current - Saturation (Isat):	800mA
Shielding:	Shielded
DC Resistance (DCR):	358mOhm Max
Q @ Freq:	20 @ 796kHz
Frequency - Self Resonant:	5MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	796 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max):	0.161" (4.10mm)

Please confirm the specifications of the products when ordering.
