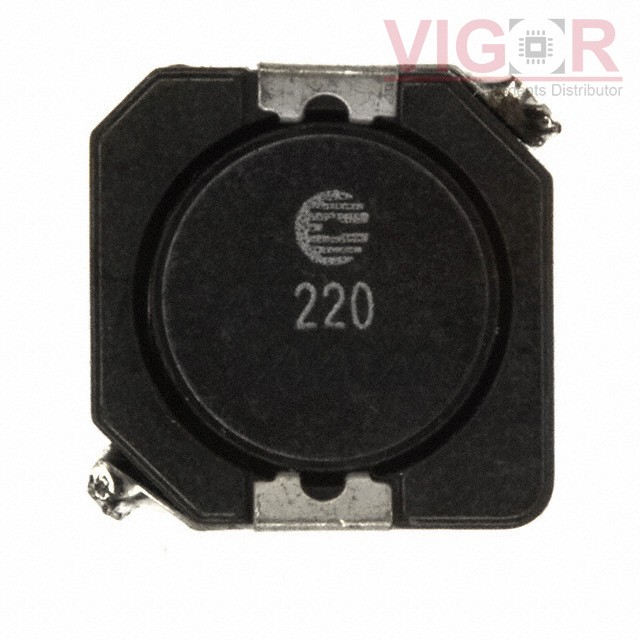

DR1050-220-R

Part No :: DR1050-220-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 22UH 3.12A 48.4 MOHM

Catalog: Fixed Inductors

DataSheet: DR1050-220-R PDF

Availability: 1111 pieces

Current price of DR1050-220-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DR1050-220-R Specifications

Type	Description
Series:	DR1050
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±30%
Current Rating (Amps):	3.12 A
Current - Saturation (Isat):	3A
Shielding:	Shielded
DC Resistance (DCR):	48.4mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max):	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
