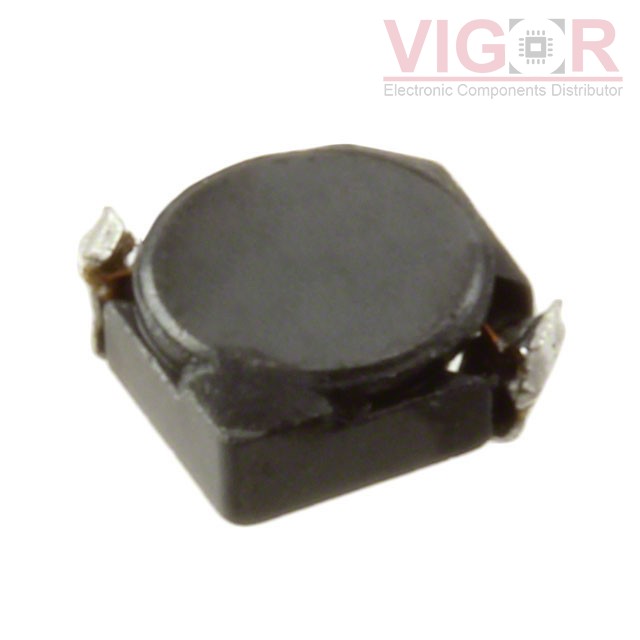

CDRH3D14/HPNP-150NC

Part No :: CDRH3D14/HPNP-150NC

Manufacturer: Sumida Corporation

Description: FIXED IND 15UH 500MA 650 MOHM

Catalog: Fixed Inductors

DataSheet: CDRH3D14/HPNP-150NC PDF

Availability: 0 pieces

Unit Price: ~~$0.30600~~

Current price of CDRH3D14/HPNP-150NC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDRH3D14/HPNP-150NC Specifications

Type	Description
Series:	CDRH3D14/HP
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	15 µH
Tolerance:	±25%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	800mA
Shielding:	Shielded
DC Resistance (DCR):	650mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max):	0.059" (1.50mm)
