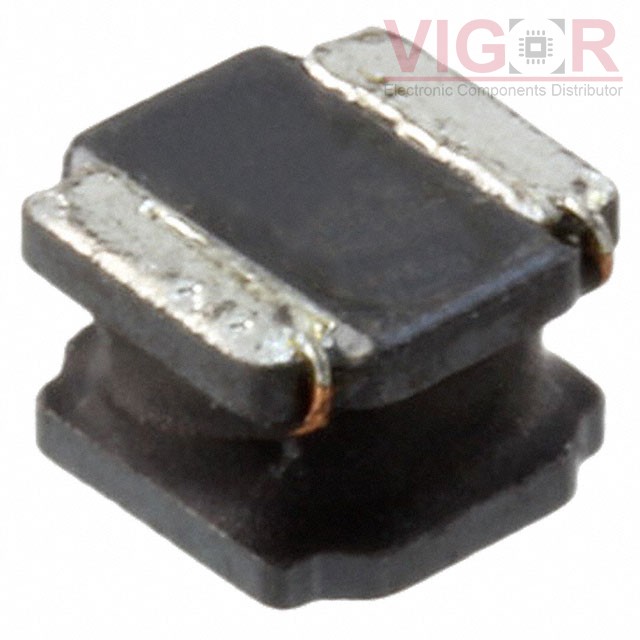

TYS4030220M-10

Part No :: TYS4030220M-10

Manufacturer: Laird - Performance Materials

Description: FIXED IND 22UH 1A 292.5 MOHM SMD

Catalog: Fixed Inductors

DataSheet: TYS4030220M-10 PDF

Availability: 1336 pieces

Unit Price: ~~$0.43000~~

Current price of TYS4030220M-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TYS4030220M-10 Specifications

Type	Description
Series:	TYS4030
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1 A
Current - Saturation (Isat):	1.3A
Shielding:	Shielded
DC Resistance (DCR):	292.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	10MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max):	0.118" (3.00mm)
