AMDLA1306Q-R22MT

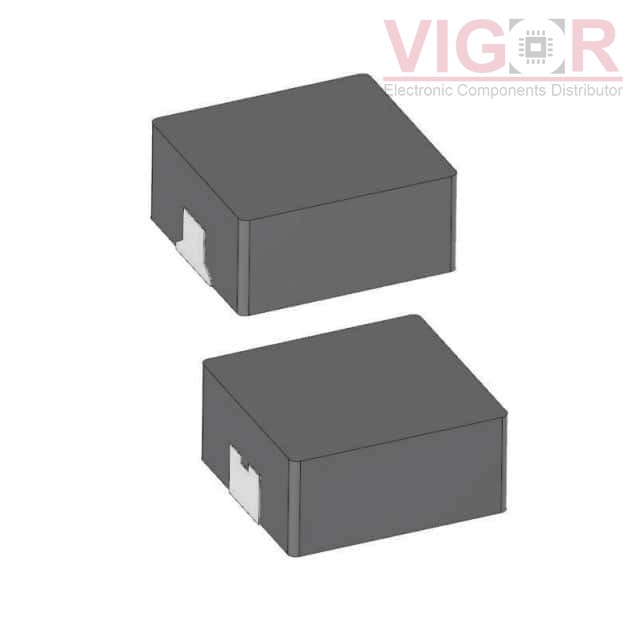

Image is for reference,
please contact us to get the real picture

Part No :: AMDLA1306Q-R22MT

Manufacturer: Abracon

Description: FIXED IND 220NH 42A 0.46 MOHM

Catalog: Fixed Inductors

DataSheet: AMDLA1306Q-R22MT PDF

Availability: 0 pieces

Unit Price: ~~$1.31376~~

Current price of AMDLA1306Q-R22MT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AMDLA1306Q-R22MT Specifications

Type	Description
Series:	AMDLA1306Q
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Molded
Material - Core:	Metal
Inductance:	220 nH
Tolerance:	±20%
Current Rating (Amps):	42 A
Current - Saturation (Isat):	105A
Shielding:	Shielded
DC Resistance (DCR):	0.46mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.531" L x 0.496" W (13.50mm x 12.60mm)
Height - Seated (Max):	0.256" (6.50mm)
