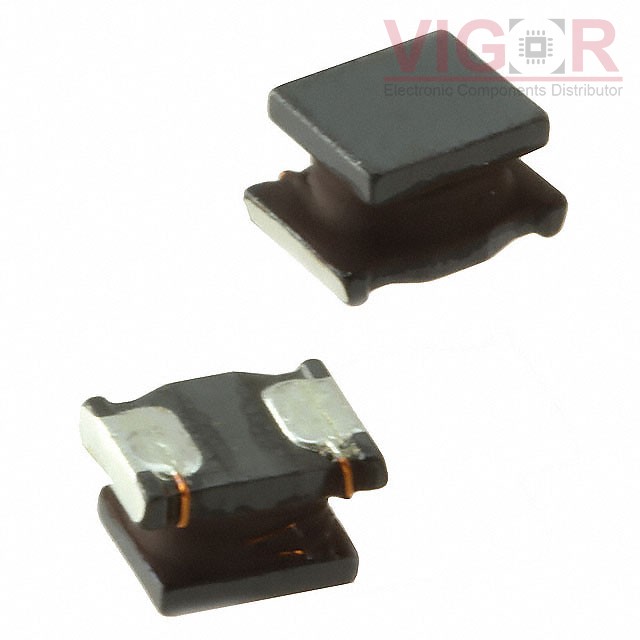

LQH43PN221M26L

Part No :: LQH43PN221M26L

Manufacturer: TOKO / Murata

VIGOR # :: 1635864

Description: FIXED IND 220UH 240MA 3.48 OHM

Catalog: Fixed Inductors

DataSheet: LQH43PN221M26L PDF

Country of origin: -

Date code: -

LQH43PN221M26L Specifications

Type	Description
Series:	LQH43
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	220 µH
Tolerance:	±20%
Current Rating (Amps):	240 mA
Current - Saturation (Isat):	220mA
Shielding:	Shielded
DC Resistance (DCR):	3.48Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	2MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812 (4532 Metric)
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.110" (2.80mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 4012

Shipped from

HK warehouse

Expected Shipping Date

Aug 05 - Aug 09 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.4000~~	~~$0.40~~
500	~~$0.2075~~	~~$103.77~~
1000	~~$0.1590~~	~~$158.97~~
2500	~~$0.1501~~	~~$375.35~~
5000	~~$0.1413~~	~~$706.55~~
12500	~~$0.1369~~	~~$1 711.00~~
25000	~~$0.1325~~	~~$3 311.75~~
50000	~~$0.1281~~	~~$6 403.00~~

Current price of LQH43PN221M26L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
