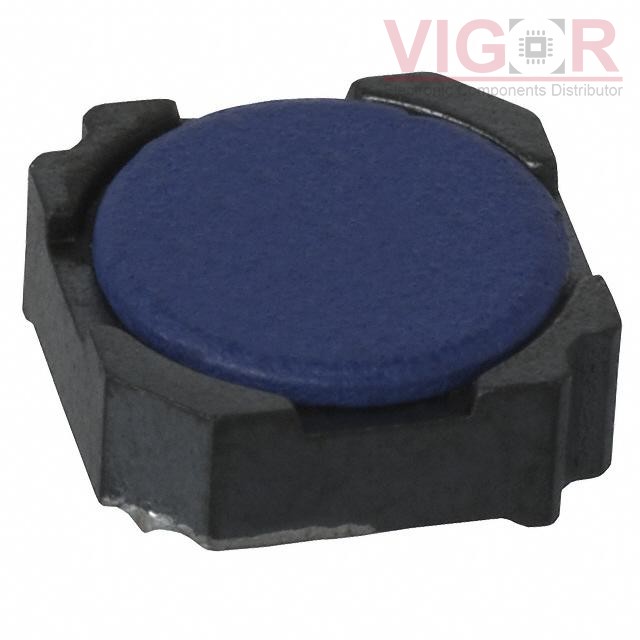

CDR7D28MNNP-101NC

Image is for reference,
please contact us to get the real picture

Part No :: CDR7D28MNNP-101NC

Manufacturer: Sumida Corporation

Description: FIXED IND 100UH 650MA 655 MOHM

Catalog: Fixed Inductors

DataSheet: CDR7D28MNNP-101NC PDF

Availability: 2691 pieces

Unit Price: ~~$1.30000~~

Current price of CDR7D28MNNP-101NC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDR7D28MNNP-101NC Specifications

Type	Description
Series:	CDR7D28MN
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	100 µH
Tolerance:	±25%
Current Rating (Amps):	650 mA
Current - Saturation (Isat):	750mA
Shielding:	Shielded
DC Resistance (DCR):	655mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max):	0.118" (3.00mm)
