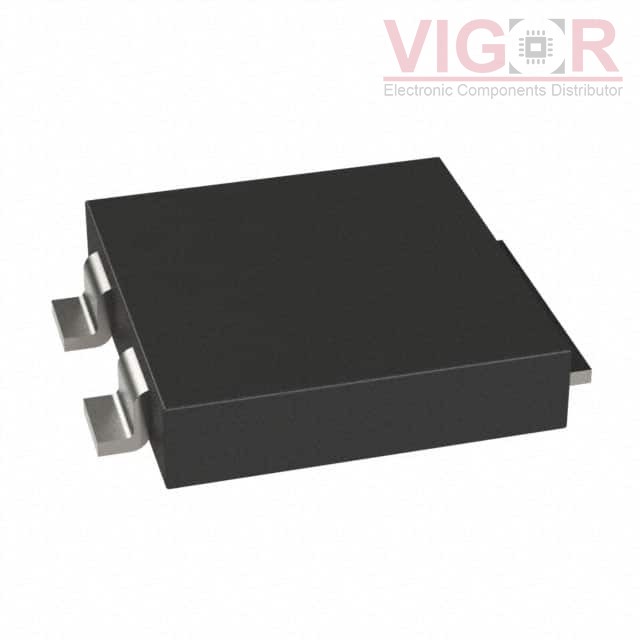

74431323012

Part No :: 74431323012

Manufacturer: Würth Elektronik Midcom

VIGOR # :: 1636480

Description: FIXED IND 120NH 26A 0.7 MOHM SMD

Catalog: Fixed Inductors

DataSheet: 74431323012 PDF

Country of origin: -

Date code: -

74431323012 Specifications

Type	Description
Series:	WE-HCM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Manganese Zinc Ferrite (MnZn)
Inductance:	120 nH
Tolerance:	±15%
Current Rating (Amps):	26 A
Current - Saturation (Isat):	45A
Shielding:	Shielded
DC Resistance (DCR):	0.7mOhm
Q @ Freq:	-
Frequency - Self Resonant:	120MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	1323
Size / Dimension:	0.512" L x 0.413" W (13.00mm x 10.50mm)
Height - Seated (Max):	0.091" (2.30mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1000

Shipped from

HK warehouse

Expected Shipping Date

Jan 01 - Jan 05 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.29~~	~~$2.29~~

Current price of 74431323012 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

LQH32MN1R8K23L

FIXED IND 1.8UH 390MA 700 MOHM

5022-202G

FIXED IND 2UH 675MA 800 MOHM SMD

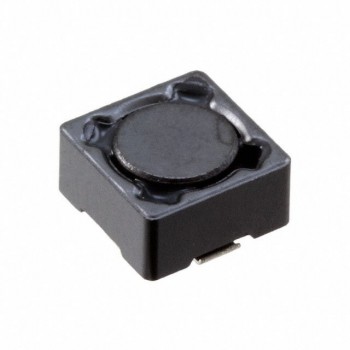

B82472G6102M000
