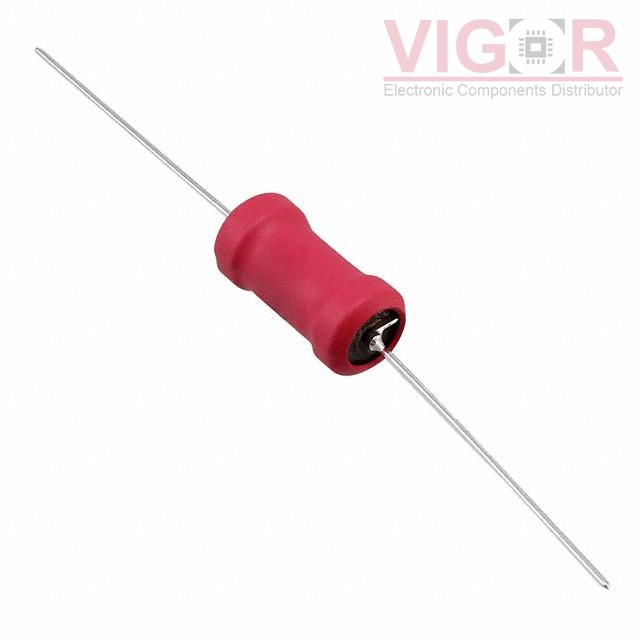

IHD3ER560L

Part No :: IHD3ER560L

Manufacturer: Vishay / Dale

VIGOR # :: 1636650

Description: FIXED IND 56UH 3.2A 43 MOHM TH

Catalog: Fixed Inductors

DataSheet: IHD3ER560L PDF

Country of origin: -

Date code: -

IHD3ER560L Specifications

Type	Description
Series:	IHD
Package:	-
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	56 µH
Tolerance:	±15%
Current Rating (Amps):	3.2 A
Current - Saturation (Isat):	2.3A
Shielding:	Unshielded
DC Resistance (DCR):	43mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.460" Dia x 0.900" L (11.68mm x 22.86mm)
Height - Seated (Max):	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Mar 31 - Apr 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.2760~~	~~$3.28~~
200	~~$3.2760~~	~~$655.20~~
600	~~$2.9120~~	~~$1 747.20~~
1000	~~$2.7300~~	~~$2 730.00~~
2600	~~$2.6390~~	~~$6 861.40~~

Current price of IHD3ER560L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
